1-Android Layers from Bottom to Top Link to heading

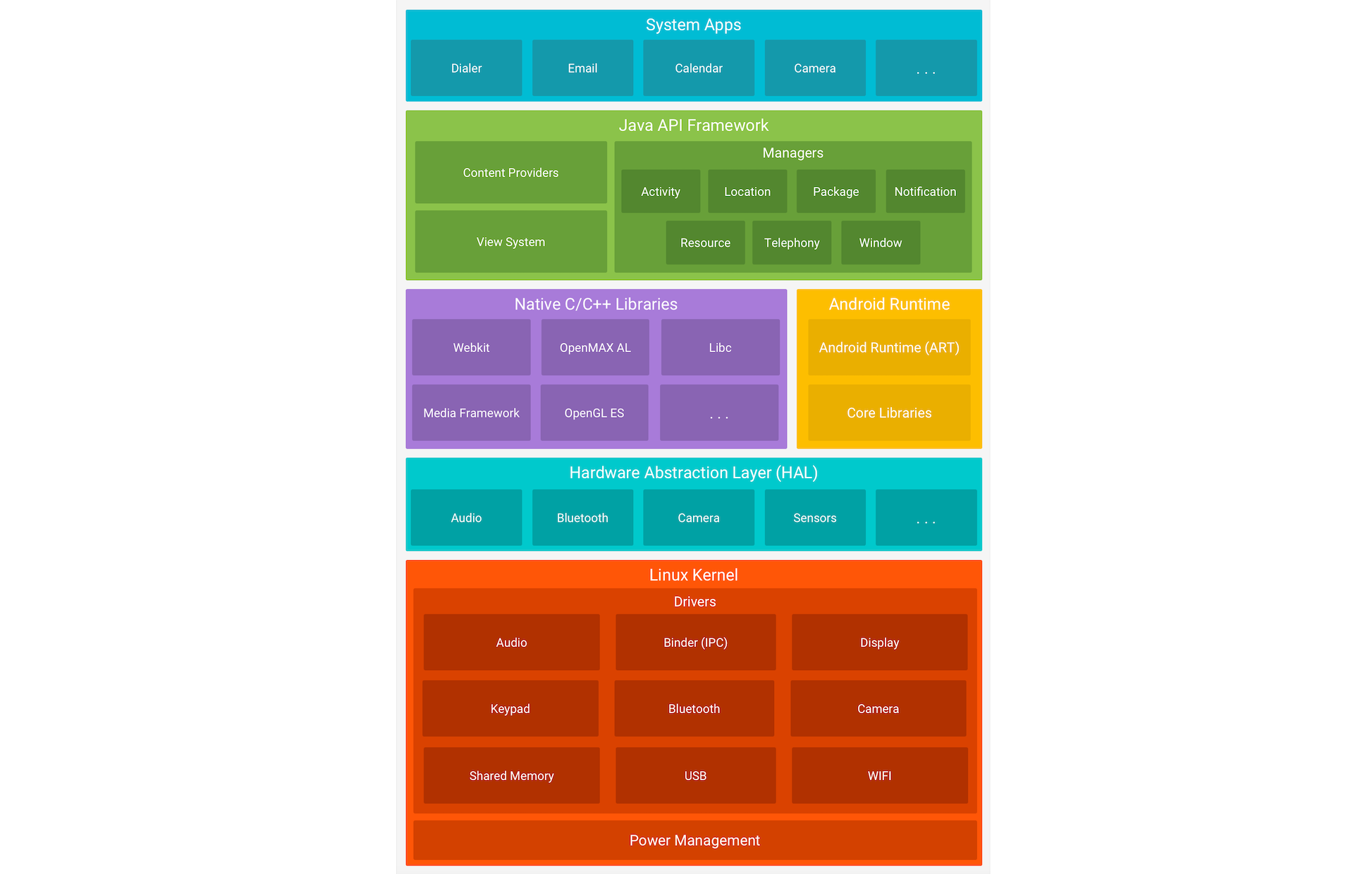

The Android platform consists of six components,The image below shows the Linux-based software stack Android uses, which contains these components

1. Linux Kernel (The very bottom layer)
   • The foundation of everything.
   • It talks directly to the processor, camera, Wi-Fi, Bluetooth, screen, speakers, etc.
   • It’s also the main source of your protection:
     • Every app runs in its own isolated box (can’t see another app’s files).
     • No app can eat all the RAM or CPU.
     • No app can use GPS, camera, or phone without permission.
2. Hardware Abstraction Layer – HAL
   • A middle layer so Android can run on thousands of completely different phones.
   • Samsung has different cameras and chips than Xiaomi than Google Pixel… each needs different commands.
   • HAL is the one that tells Android: “Don’t worry, I’ll deal with this hardware no matter what brand it is – you just say ‘open camera’ and I’ll handle the rest.”
3. Android Runtime – ART (The thing that runs apps now)
   • Used from Android 5 (Lollipop) and above.
   • When you install an app, ART converts it to super-fast code immediately (AOT compilation).
   • That’s why apps open lightning-fast these days.
4. Native C/C++ Libraries (Super-fast libraries)
   • Written in C and C++ languages.
   • Used by heavy games like PUBG, Call of Duty Mobile, Genshin Impact to get maximum speed and performance.
5. Java API Framework
   • All the ready-made tools that developers use:
     • Buttons, lists, notifications, maps, camera functions, location, contacts, etc.
6. System Apps (The very top layer)
   • The apps that come pre-installed from the factory:
     • Camera, Messages, Phone dialer, Settings, Clock, Play Store, Browser, etc.

Third Part: Dalvik VM (The Old Way)

• Was used from Android 1 up to Android 4.
• Converted the code only when you opened the app (slow).
• Got completely replaced by ART starting from Android 5.

2-Rooting Link to heading

The device is divided into two main parts:

/system → System files (completely locked, you can't modify them normally)

/data → Your data and application data

Important Directories Link to heading

Android's file structure is very similar to other Linux distributions. The directories listed below are some of the most important to consider while conducting Android app assessments.

3-Android Apps & Os Security Link to heading

Android Application Development Languages

The two main languages are Kotlin and Java

The Android SDK tools take the source code, images, files, and assets, and convert them all into a single file called APK (Android Package).

• The APK file is an archive (similar to a ZIP file) with the .apk extension, and it contains everything

the application needs to run: The compiled code (.dex) The manifest file (application data) Images, icons, and files Pre-built libraries

Application Sandbox Link to heading

Every Android app runs inside its own isolated security sandbox. This whole idea is built on the fact that Android is a multi-user Linux system, and every app is treated as a completely separate Linux user. Security works like this:

1. Every app gets its own unique UID (User ID) that is different from all other apps.
2. The app’s files belong only to that UID → no other app (or user) can read or write them.
3. Every app runs in its own separate process, and each process has its own separate instance of the Android Runtime (ART).
4. The system starts the process when the app is needed and kills it when RAM is low or when the app is closed.
5. Principle of least privilege: the app only gets the exact permissions it really needs. Any extra permission must be declared in the AndroidManifest.xml file and explicitly approved by the user. ⇒ TO read it use like jadx-gui

4-Application Signing Link to heading

Application Signing… Why Does It Exist?

To install any application on an Android phone or upload it to Google Play, the APK file must be signed.

This signature is like an app's fingerprint… its main purpose is to:

• Ensure that the application hasn't changed a single byte from the moment the developer created it until it reaches you.
• If someone modifies the application along the way (hacker, virus, website…) → the signature will be corrupted → the phone will refuse to install it
• Signing Ways: 1-Android Studio, via the Generate Signed App Bundle / APK build option. 2-The jarsigner / apksigner tools. 3-Play App Signing.

APK Signing Steps

Create a file called params.txt with the necessary input data for keytool to generate a keypair.

Pipe the contents of params.txt into keytool to automate the key generation process. The key is stored in key.keystore.

Use zipalign to optimize myapp.apk. This allows uncompressed files to be accessed directly via mmap, creating an optimized application named myapp_signed.apk.

Sign the final app with apksigner using the key stored in key.keystore. The password is echoed through the pipe.

echo -e "password\npassword\njohn doe\ntest\ntest\ntest\ntest\ntest\nyes" > params.txt
cat params.txt | keytool -genkey -keystore key.keystore -validity 1000 -keyalg RSA -alias john
zipalign -p -f -v 4 myapp.apk myapp_signed.apk
echo password | apksigner sign --ks key.keystore myapp_signed.apk

example:

Janus (CVE-2017-13156):

The idea: The hacker would place a malicious DEX file at the beginning of the APK, and the v1 signature wouldn't see this part → the application would install normally and the malicious code would run.

Scheme versions are vulnerable to CVE-2017-13156: signature scheme v1

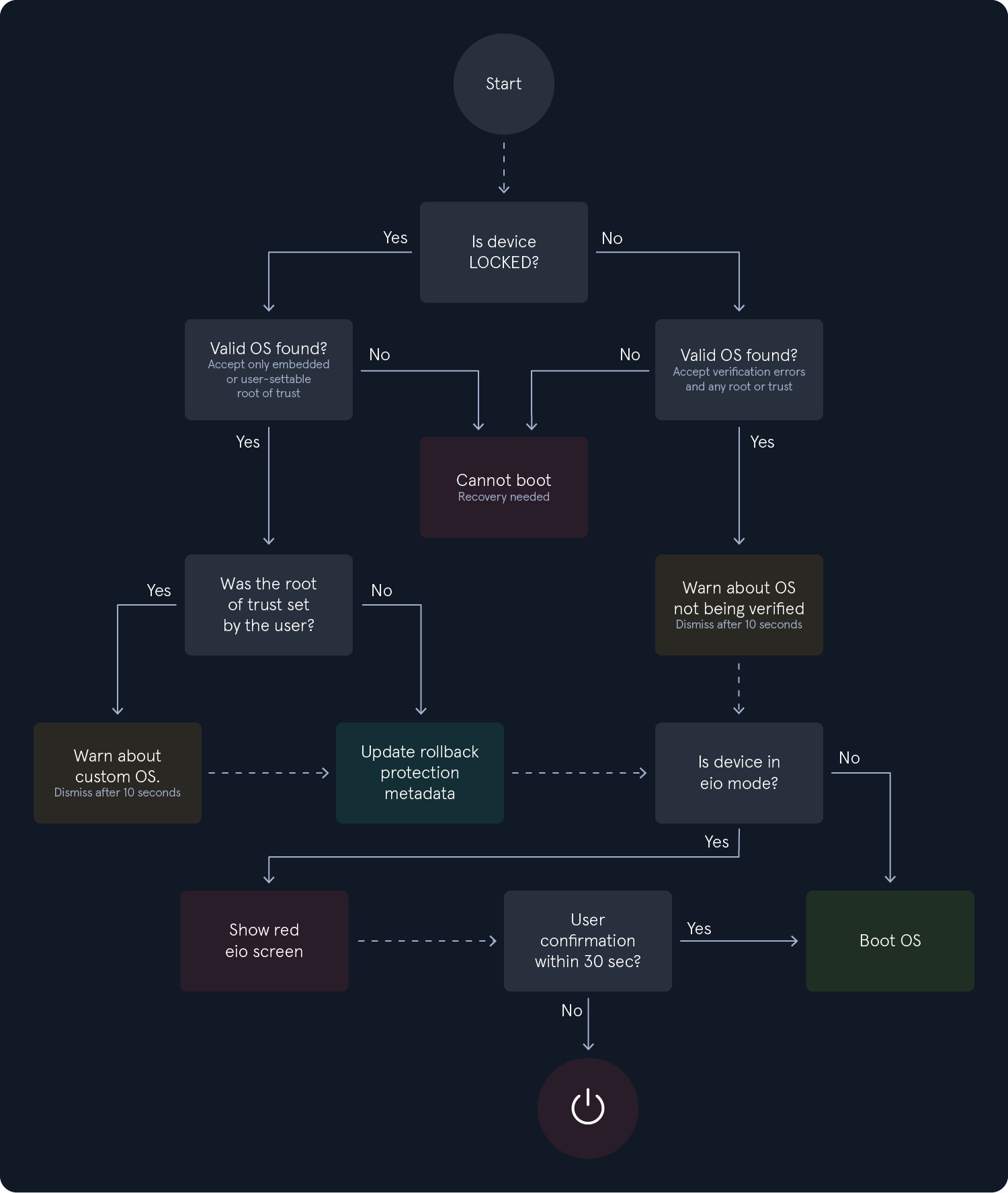

5-Verified Boot Link to heading

6-APK Structure Link to heading

The most important thing to remember

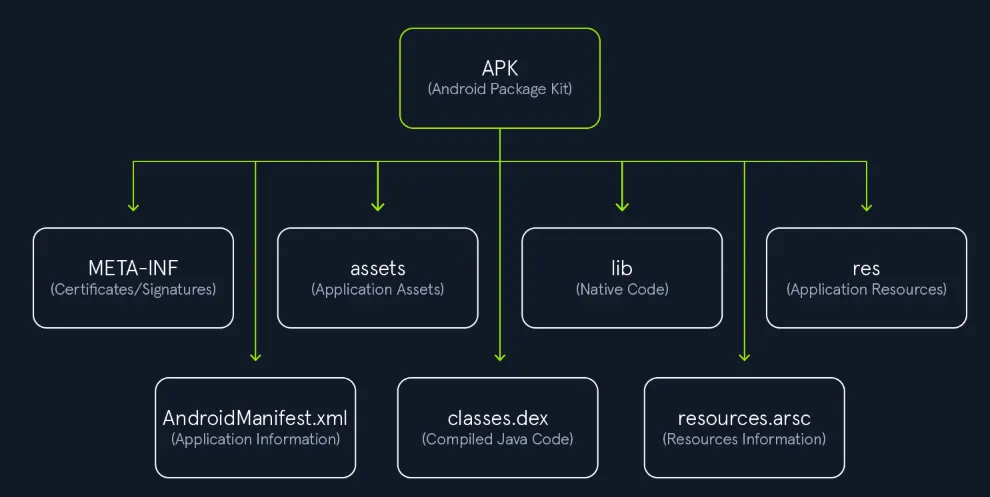

An APK is just a regular ZIP file… you can unpack it and repack it.

Each file inside has a very specific function.

If you modify anything inside it (even a single byte) → you must decompress the APK from the beginning, otherwise the phone will refuse to install it.

The file containing the actual code that runs is classes.dex → this is the heart of the application

7-Android Apps & Development Link to heading

Native Apps Link to heading

app just build with java or kotkin

The application consists of two main parts:

Layout → An XML file named activity_main.xml located in the path app/res/layout/. This file contains the TextView, Buttons, Images, etc.

Copy Code → A Java or Kotlin file named MainActivity.java or MainActivity.kt

res/values/strings.xml → Here the programmer puts all the hardcoded strings in the application, such as passwords, API keys, secret messages... etc.

Native Code Link to heading

app just build with java or kotkin and Some files with c\c++ For encryption

There are regular applications written in Java/Kotlin… but sometimes the programmer puts part of the code in C++ to make it faster or harder to reverse.

This part is converted into .so files (binary libraries) inside the APK.

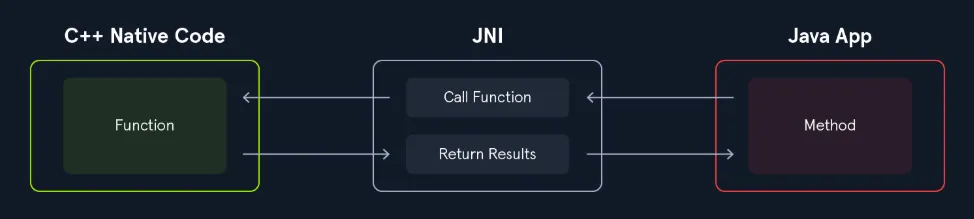

To communicate with C++, Java uses JNI.

There are two ways to load the .so library:

• Static → From the moment the application starts → System.loadLibrary("Library_name");
• Dynamic → During runtime (very dangerous if the path is controlled by the user) → System.load("/path/

function that returns the string inside the cpp file: NewStringUTF()

8-Javascript & WebViews Link to heading

WebView is an Android component that allows you to display web pages within an app without opening a browser.

Hybrid apps, such as those built with Cordova or Ionic, use WebView to display HTML, CSS, and JavaScript.

# load js
webview.getSettings().setJavaScriptEnabled(true);

# // Local file uploads are allowed via file://
webView.getSettings().setAllowFileAccess(true);

# // via file://
webview.loadUrl("file:///android_asset/html/index.html");

Application Frameworks

9-Android Application Components and Interprocess Communication Link to heading

Activities Link to heading

An Activity is a single screen within an app (such as the login screen, home screen, settings screen, etc.).

It's the part of the app that the user interacts with.

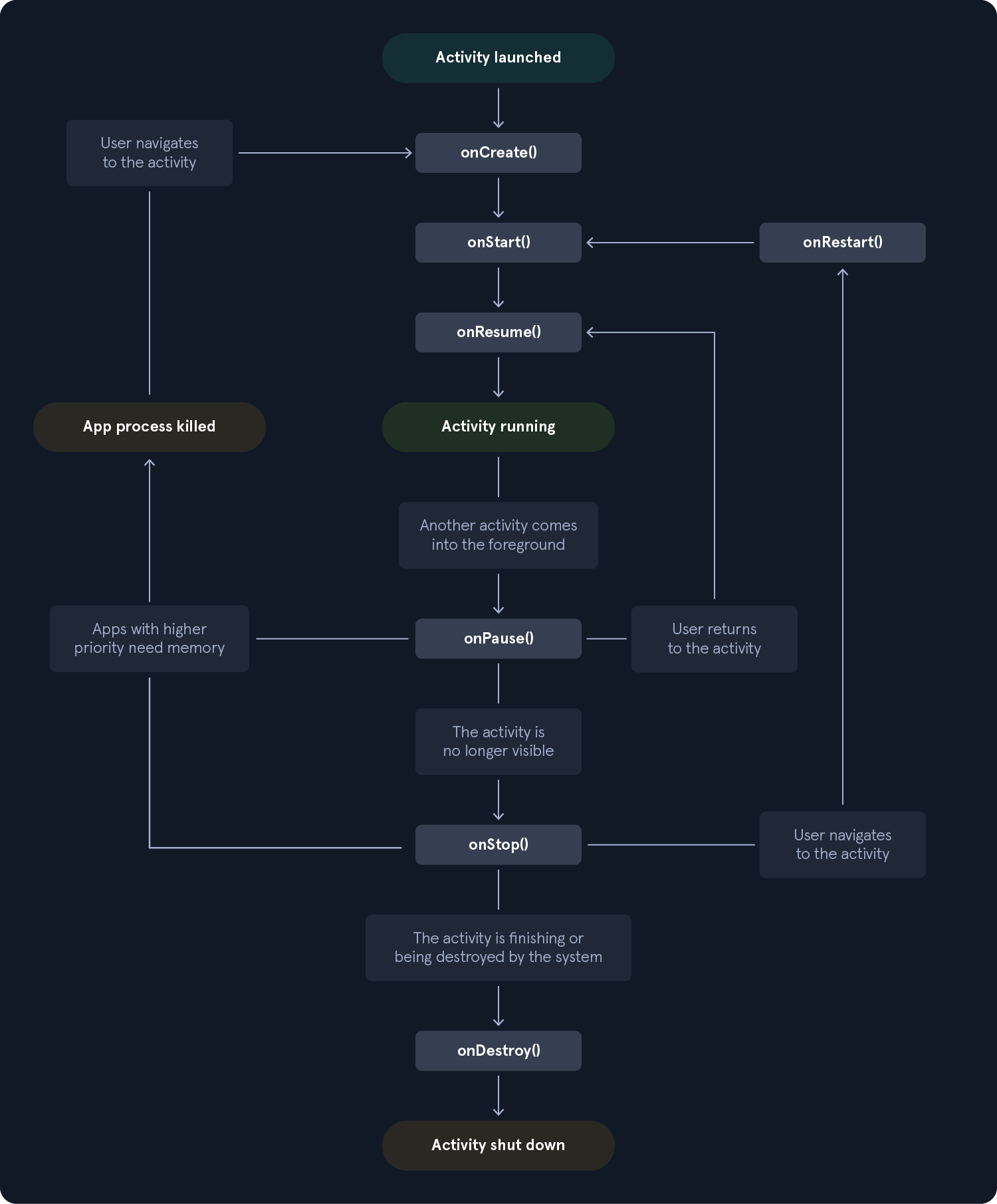

Activity Lifecycle

The most important function of Pentester is onCreate() inside MainActivity

How do we open a new Activity?

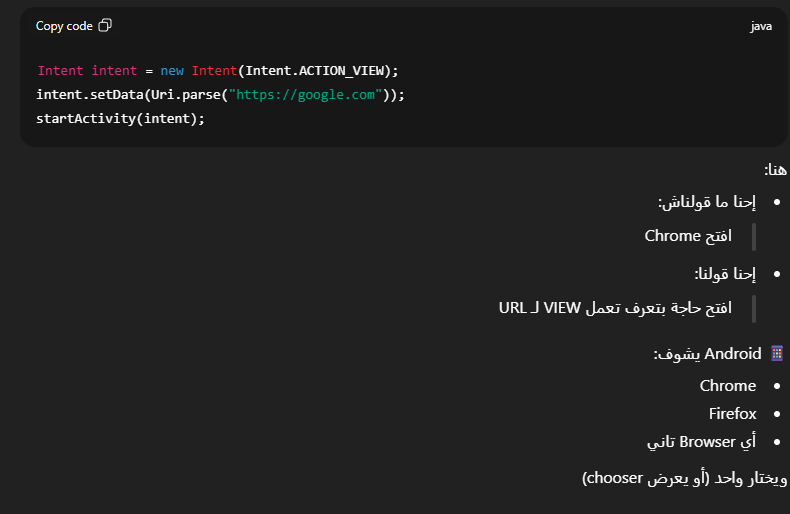

We use something called an Intent (a message that tells the system: Open this screen).

Two methods:

startActivity(intent) → Opens a new screen (without waiting for a response).

startActivityForResult(intent, requestCode) → Opens a screen and waits for a result (like a selection screen).

How do we know that this Activity is the starting point of the application?

The AndroidManifest.xml file must contain code like this:

<activity android:name=".MainActivity">
    <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
    </intent-filter>
</activity>

if u see

<activity android:name=".SecretActivity" android:exported="true" />

→ This means any other application on the phone can open this screen

Services Link to heading

A service is an Android component that runs in the background without any user interface.

This means the user can close the app and exit, and the service will still be running.

Common examples:

• Playing music (like Spotify when you exit the app and the song is still playing)
• Downloading large files in the background
• Repeatedly sending your location to the server (like delivery apps)

The three types of services

We need to know the Service in the Manifest. Like the Activity, you need to write the Service in the AndroidManifest.xml file like this:

<service android:name=".MyForegroundService"/>
<service android:name=".MySecretService" android:exported="true"/>

Broadcast Receivers Link to heading

What is a Broadcast Receiver?

It's a component in Android whose function is to "listen" to certain events and respond to them immediately.

It's like a radio that listens for a specific signal and starts playing when the signal arrives.

Common examples:

• When you plug in the charger to your phone → the system sends a signal called ACTION_POWER_CONNECTED
• When the internet connection is active or disconnected
• When an app downloads a file and sends a signal to other apps telling them "Data is ready"

The Broadcast Receiver's role is to receive these signals and do something (for example, open an Activity, start a Service, log… etc.).

Broadcast Receivers also need to be declared in the AndroidManifest.xml file.

<manifest ...>
    <application ...>
        <receiver android:name=".MyBroadcastReceiver">
            <intent-filter>
                <action android:name="android.intent.action.ACTION_POWER_CONNECTED" />
                <action android:name="android.intent.action.ACTION_POWER_DISCONNECTED" />
            </intent-filter>
        </receiver>
    </application>
</manifest>

How does it work?

You need to create a class that inherits from BroadcastReceiver. You need to modify the only important function in it: onReceive()

public class MyBroadcastReceiver extends BroadcastReceiver {
    @Override
    public void onReceive(Context context, Intent intent) {
        if ("android.intent.action.ACTION_POWER_CONNECTED".equals(intent.getAction())) {
            // الشاحن اتوصل
            Toast.makeText(context, "الشاحن وصل!", Toast.LENGTH_LONG).show();
        }
    }
}

We need to record it in AndroidManifest.xml

If the Receiver is written in the Manifest and contains android:exported="true" or even without writing exported at all (in older versions), any other application or even ADB can send it an Intent and run it!

Content Providers Link to heading

What exactly is a Content Provider?

It's the fourth and final component of a core application, and its sole function is to allow different applications to share data with each other in a secure and organized way.

A real-world example:

The Contacts app on your phone has a Content Provider.

Any other application (like WhatsApp or Telegram) can request this Content Provider to retrieve names and phone numbers → without directly accessing the database.

How does it work?

Data can be located in:

• An SQLite database
• Files in internal or external memory
• Even on a remote server

Each operation is performed using a standardized method called CRUD: Create → Add data Read → Read data Update → Modify data Delete → Delete data

To read data from any Content Provider, use this function:

getContentResolver().query(...)

The function responsible for the read operation (Read) is query()

<provider
    android:name=".MyContentProvider"
    android:authorities="com.example.myapp.provider"
    android:exported="false" />

Very important:

android:authorities → This is the URL of the provider (it must be unique). android:exported="false" → If you leave it true or don't write it at all (in older versions) → Any other application can read the data!

content://

Intent Link to heading

An Intent is a message you send to tell the system or another application:

"Do something specific for me now."

Intents are what trigger almost everything in Android:

Open a new screen → Intent Start a background service → Intent Send a broadcast → send intent Share an image or link with another application → Intent

The Intent can carry additional data in the form of a key-value (like JSON).

Why is an Intent so dangerous in a Pentest?

If an Activity, Service, or Receiver is set to exported="true" → you can send it an Intent from ADB or another application.

You can include any dangerous extras in the Intent (tokens, passwords, commands, etc.).

You can open hidden screens, start secret services, or read data from a Content Provider

The putExtra() method is used within an Intent to pass data between Android components (Activities / Services / Receivers) in the form of key‑value pairs. : putExtra()

Binders Link to heading

Binder allows an application (or even a different process within the same application) to call functions that exist in another process as if they actually exist in it!

This means you can do something like Remote Control: you ask a remote service to execute any function for you and return the result immediately.

How does it work?

Create a file with the .aidl (Android Interface Definition Language) extension. → This file will define the functions you want to call remotely.

interface ICalculator {
    int add(int a, int b);
}

The service works normally but inherits from the stub generated by the AIDL:

public class CalculatorService extends Service {
    private final ICalculator.Stub binder = new ICalculator.Stub() {
        public int add(int a, int b) { return a + b; }
    };

    @Override
    public IBinder onBind(Intent intent) {
        return binder;   // هنا الـ Binder بيرجع للعميل
    }
}

Binder is the only way to call real functions (not just Intents) from another application or a different process.

If the Service is set to android:process=":remote" →, it's running in a separate process, and therefore any Binder within it will run via a real IPC.

Exploiting Binder is one of the most dangerous attacks in Android (we'll see this in the advanced modules).

Deep Links Link to heading

What is a Deep Link?

It's a link that, when clicked, opens the app directly and takes you to a specific screen within it (not a browser).

Real-life examples:

Link in an email: app://spotify/song/12345 → Opens Spotify and plays the song immediately.

Link in WhatsApp: https://www.instagram.com/p/ABC123/ → Opens Instagram to this post

Types of Deep Links Link to heading

Standard Deep Link Link to heading

• Example:

app://myapp/products/cpu

• Requires an Intent Filter in AndroidManifest.xml for the receiving Activity:

<activityandroid:name=".ProductsActivity">
<intent-filter>
<actionandroid:name="android.intent.action.VIEW"/>
<categoryandroid:name="android.intent.category.DEFAULT"/>
<categoryandroid:name="android.intent.category.BROWSABLE"/>
<dataandroid:scheme="app"
android:host="myapp"
android:pathPrefix="/products/"/>
</intent-filter>
</activity>

• Intent Filter components:
  • android:scheme="app" → the protocol type
  • android:host="myapp" → host
  • android:pathPrefix="/products/" → path inside the app
• Handling the link in code:

Uridata= getIntent().getData();
StringProductName= data.getLastPathSegment();// "cpu"

⚠️ Security risk:

• Android does not verify ownership of custom schemes, so any malicious app can declare itself as the default handler and exploit the link.

Android App Link Link to heading

• Example:

https://www.myapp.com/products/cpu

• Requires https + domain ownership verification (assetlinks.json)
• Same Intent Filter setup but with scheme = https and host = www.myapp.com:

<dataandroid:scheme="https"
android:host="www.myapp.com"
android:pathPrefix="/products/"/>

✅ Advantages:

• If the app is not installed → opens in a browser
• Ensures only the verified app can handle the link
• Prevents malicious apps from hijacking the link

⚠️ Security risk if poorly implemented:

• Passing sensitive data in the URL (uid, token) without verification
• Could be exploited to access other users’ data (IDOR)
